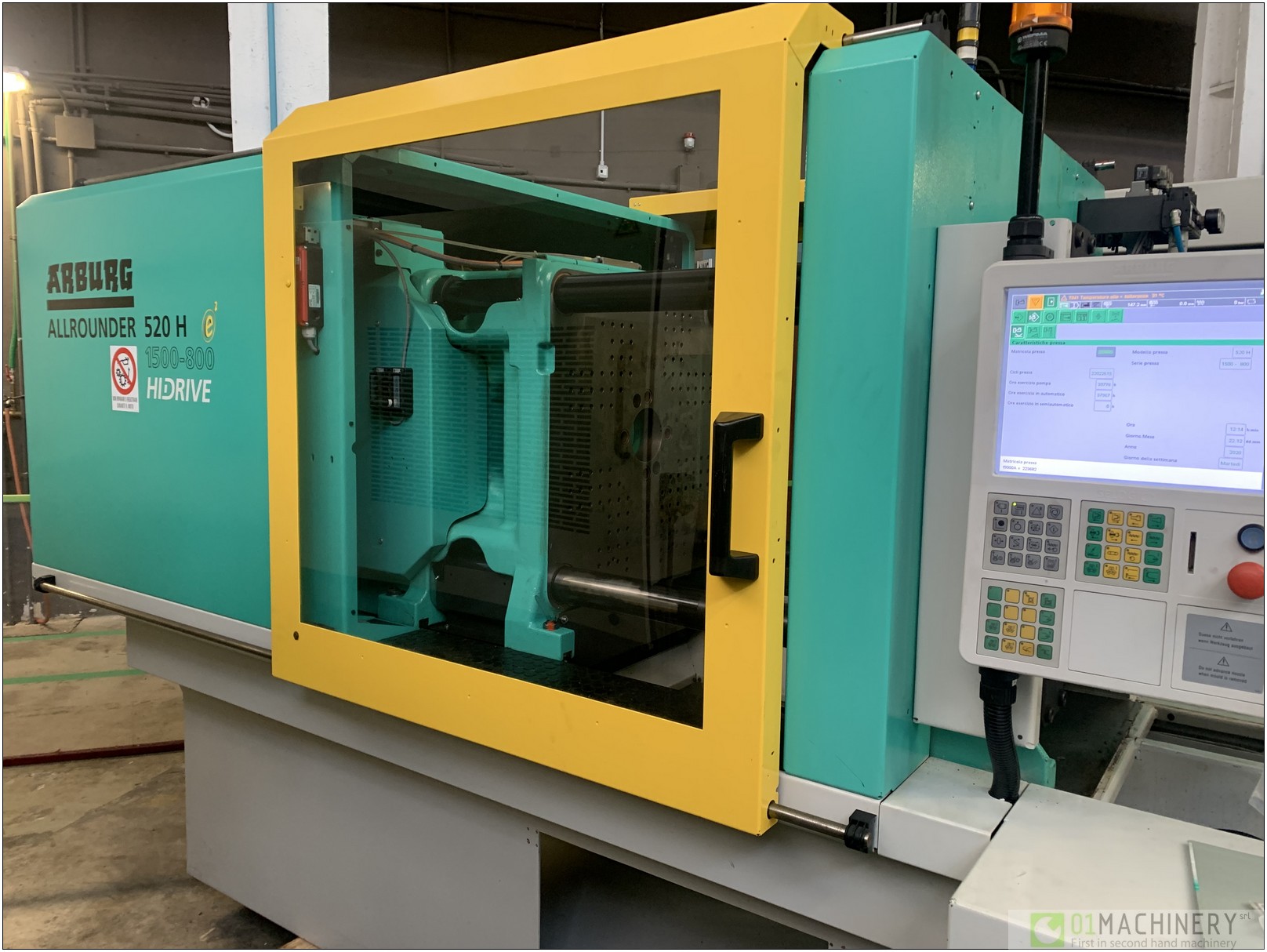

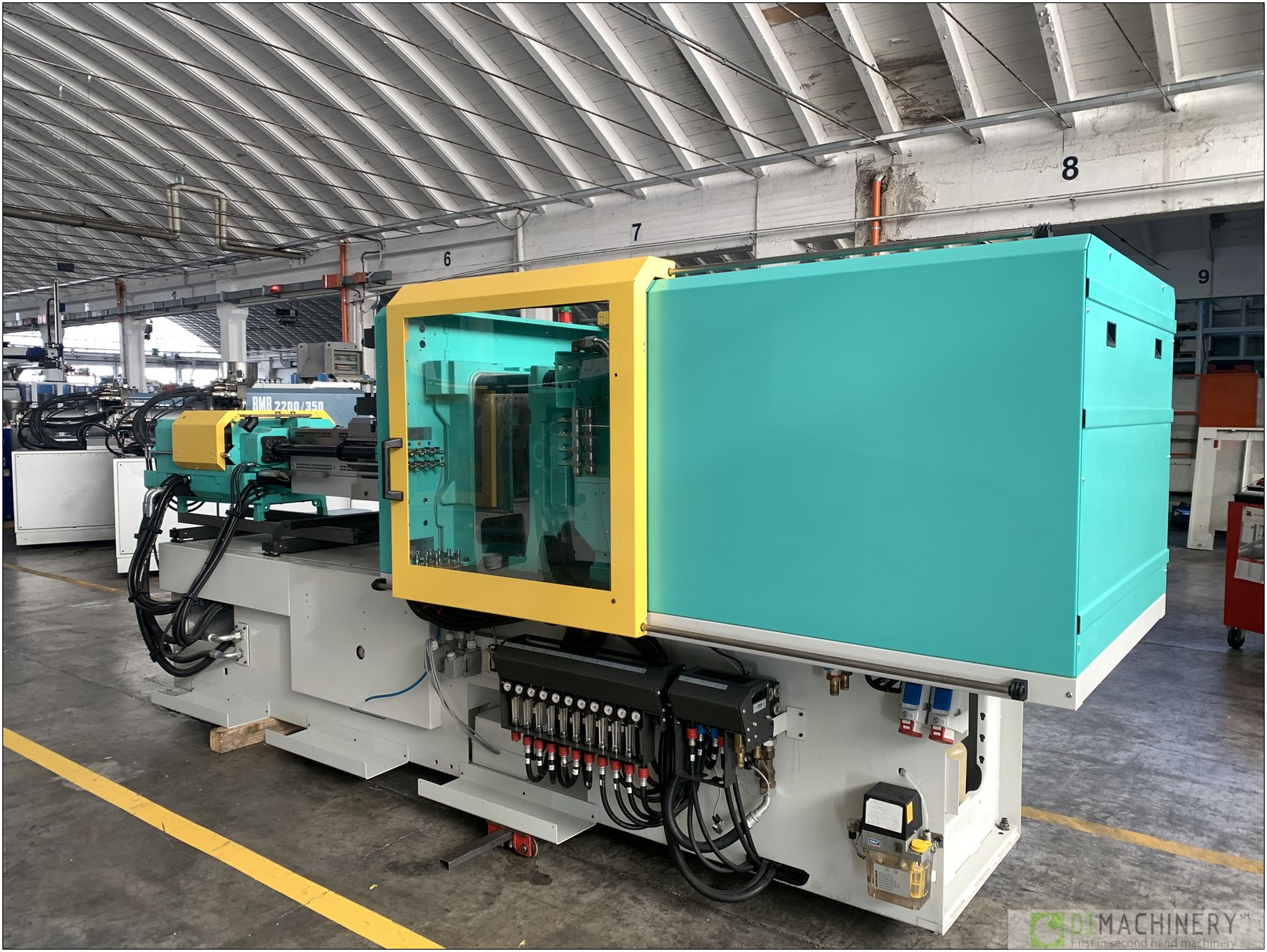

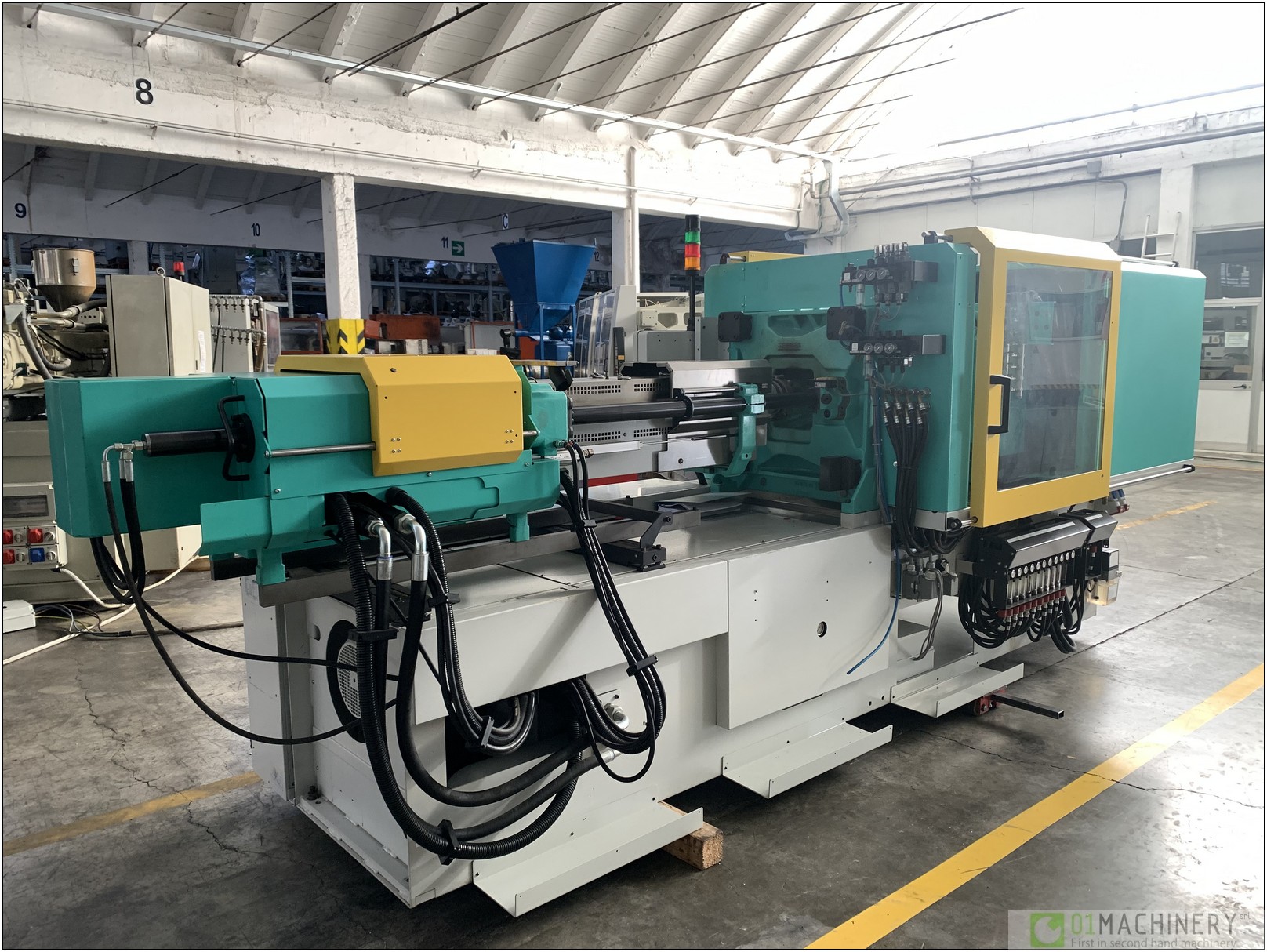

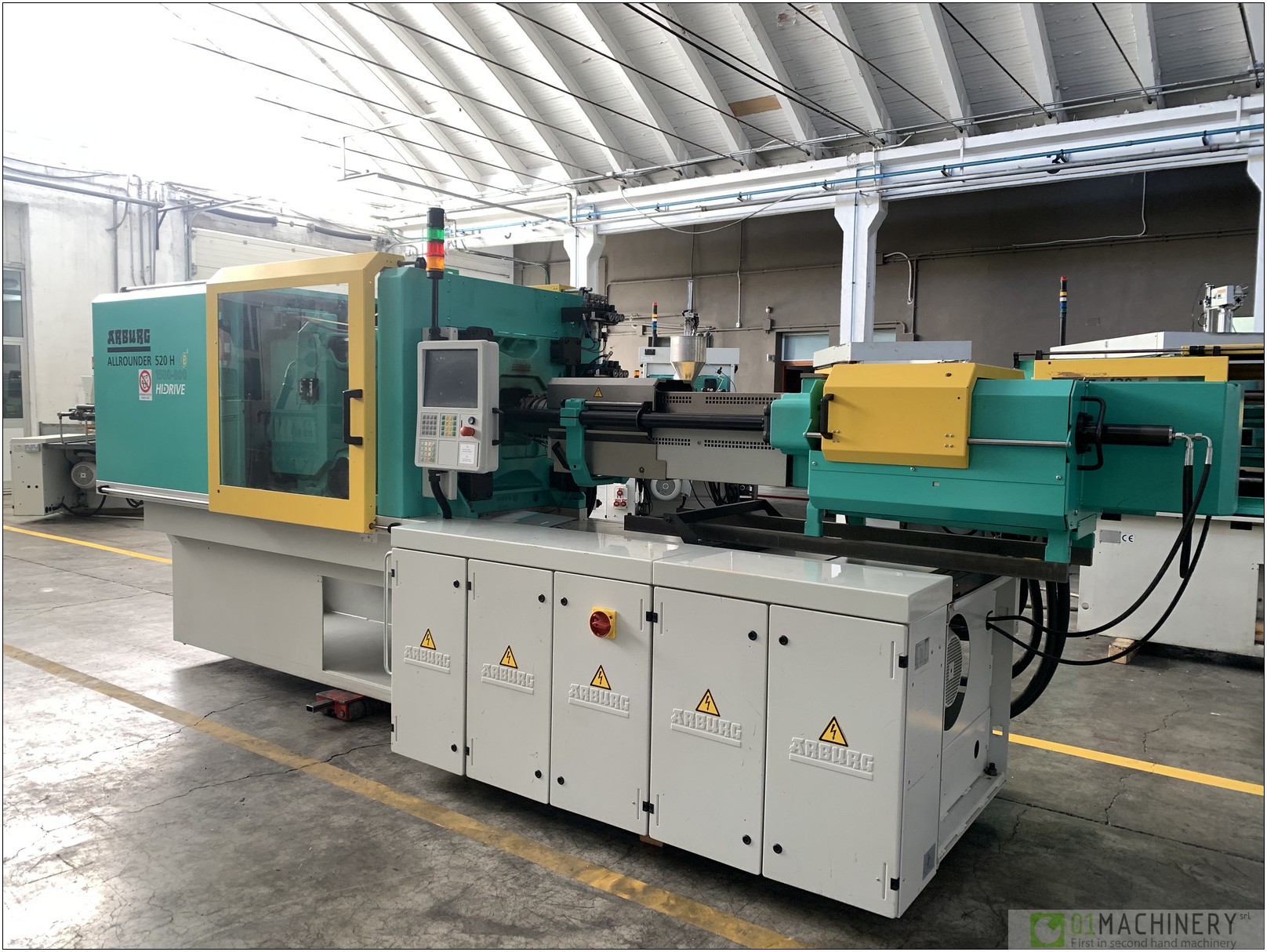

ARBURG 520 H 1500-800 In 7973 AR 150 13

SOLD
Thumb0-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb1-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb2-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb3-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb4-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb5-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb6-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb7-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb8-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb9-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb10-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb11-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb12-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb13-ARBURG 520 H 1500-800 In 7973 AR 150 13 Thumb14-ARBURG 520 H 1500-800 In 7973 AR 150 13

Technical Sheet

  • Code: In 7973 AR 150 13
  • Brand:ARBURG
  • Model:520 H 1500-800
  • Tonnage:150
  • Year:2013
  • Clearence between tie-bars:520x520
  • Screw diameter:55
  • Calculated shot volume:474
  • Min/Max mould thickness: 250-550
  • Core pull: 3 aria
  • Euromap: 520H 1500-800
  • Mov. plasten stroke: 400

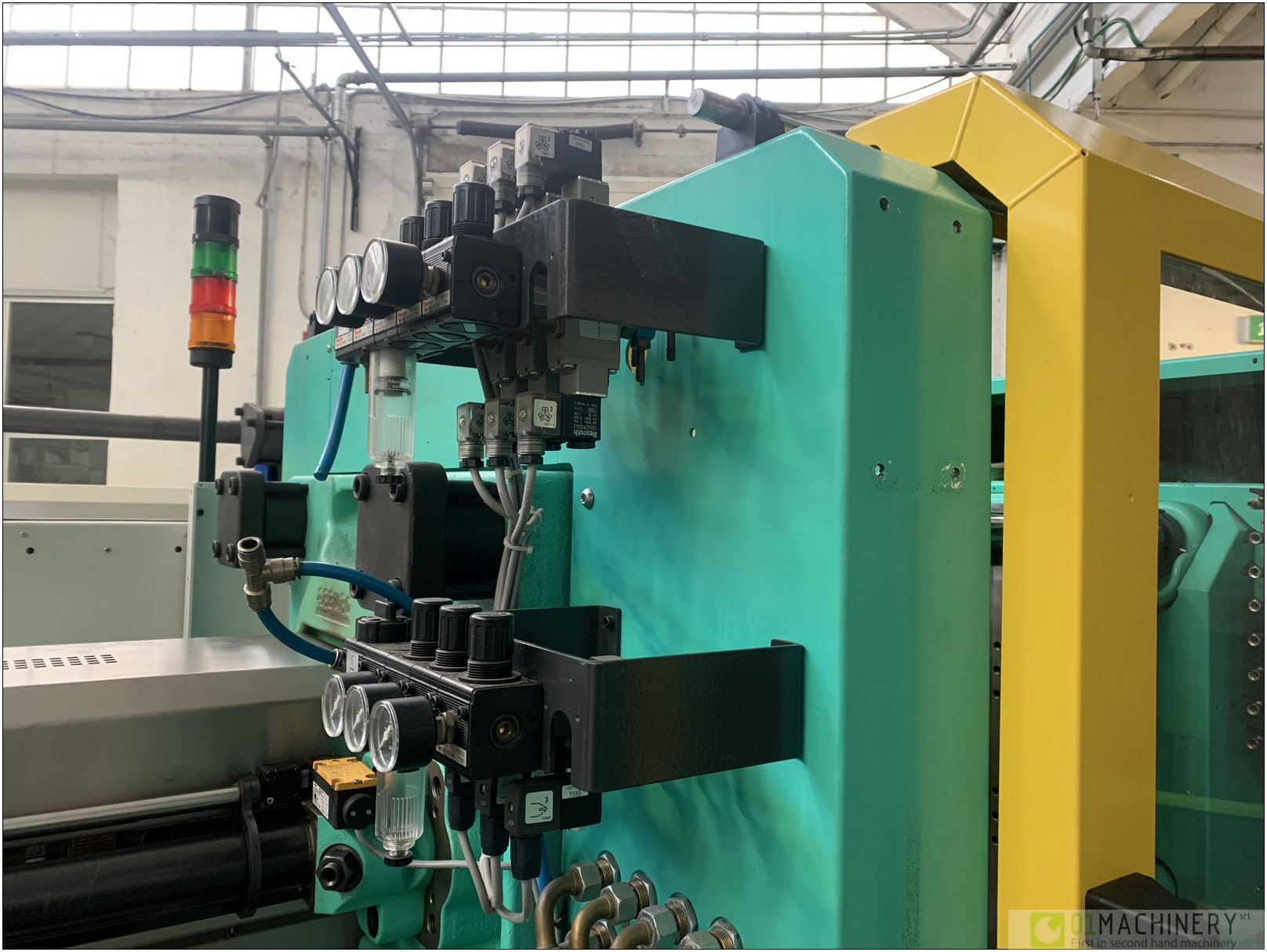

  • Air ejection: 3
  • Akkumulator: Yes

Description

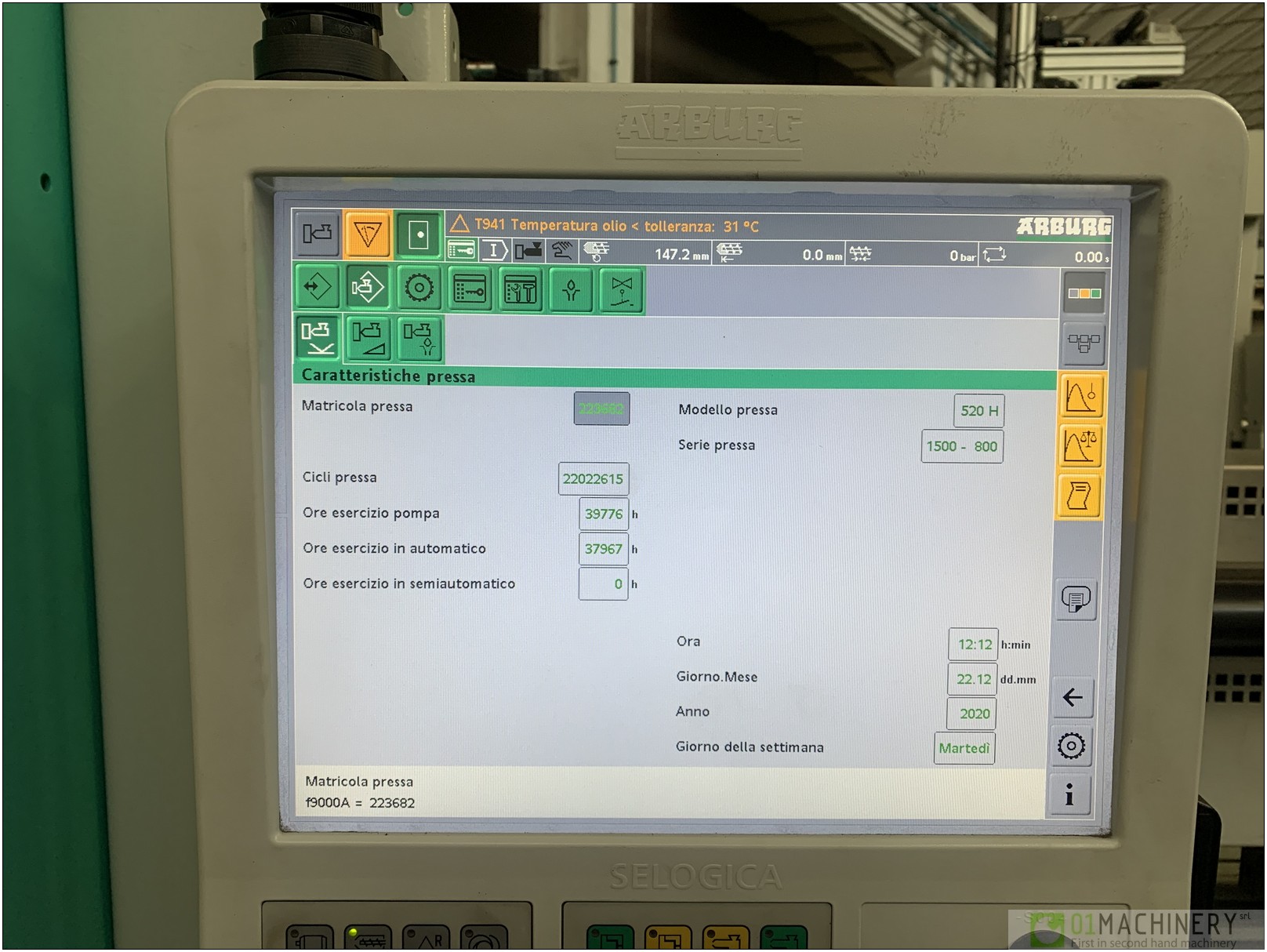

Working hours: 38.000 h

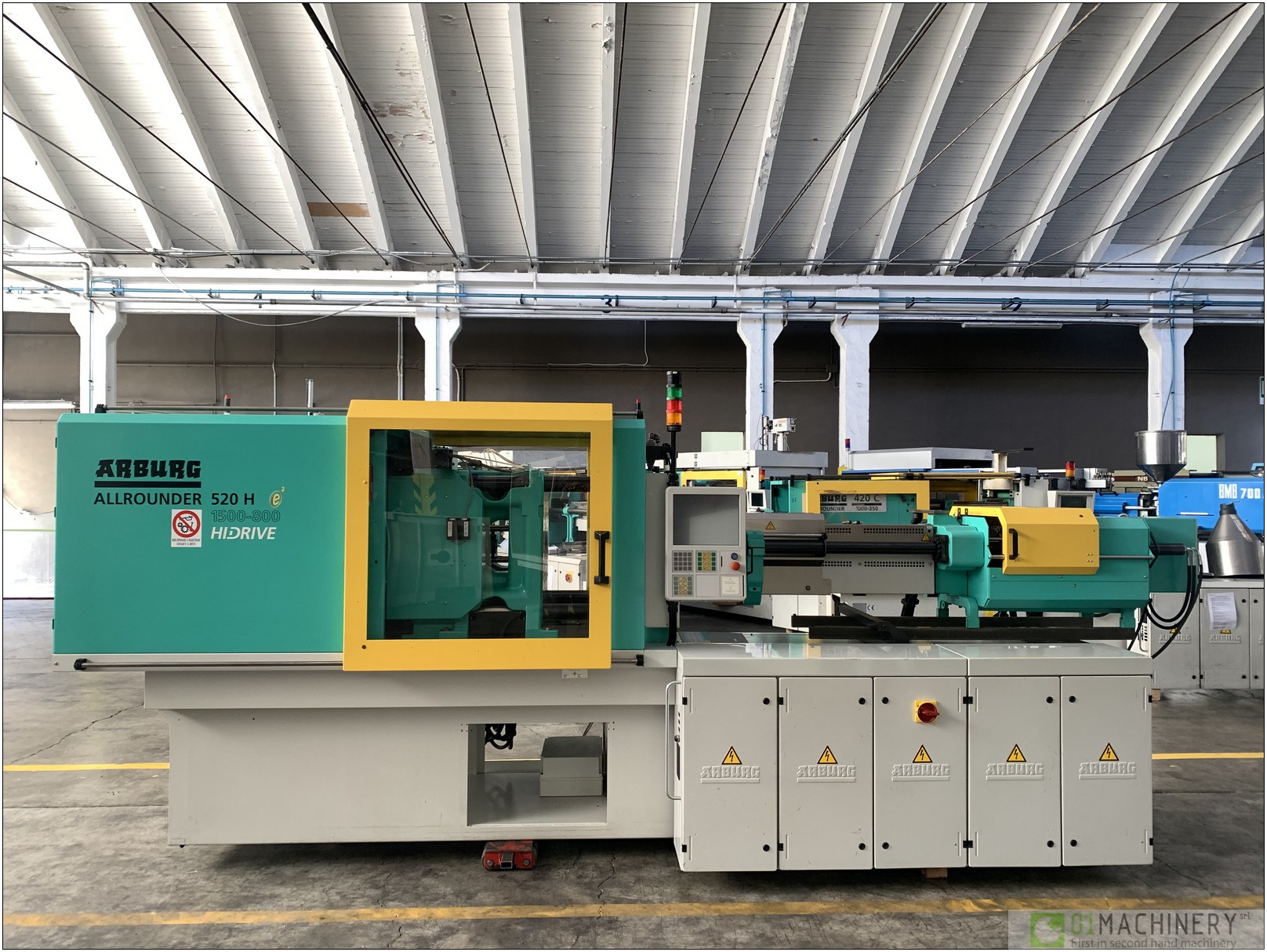

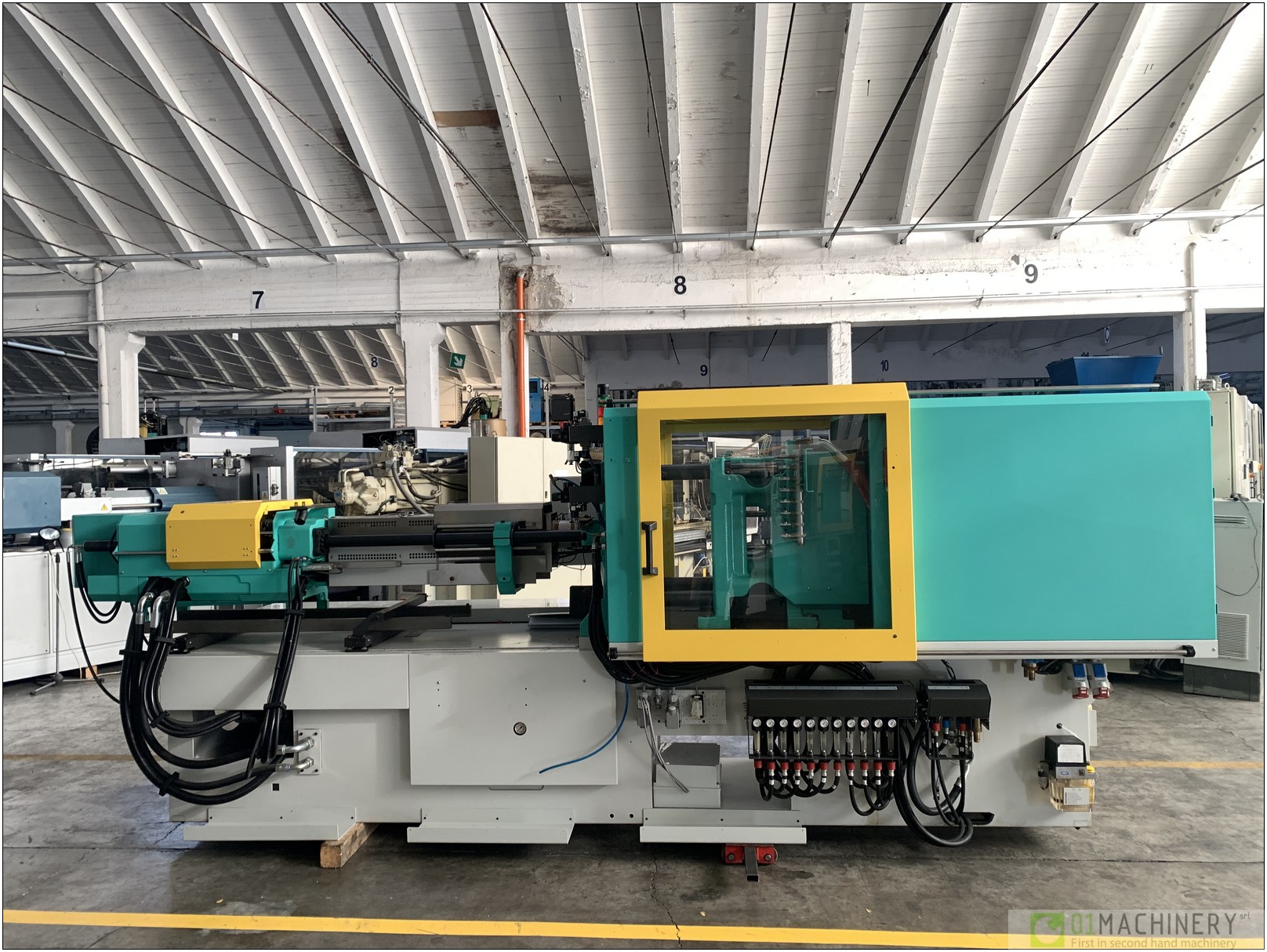

Hybrid injection machine with electric closure, injection under accumulator, electric dosage.
55 mm screw with extended barrier screw
shutter
shutter drive
electric extractor

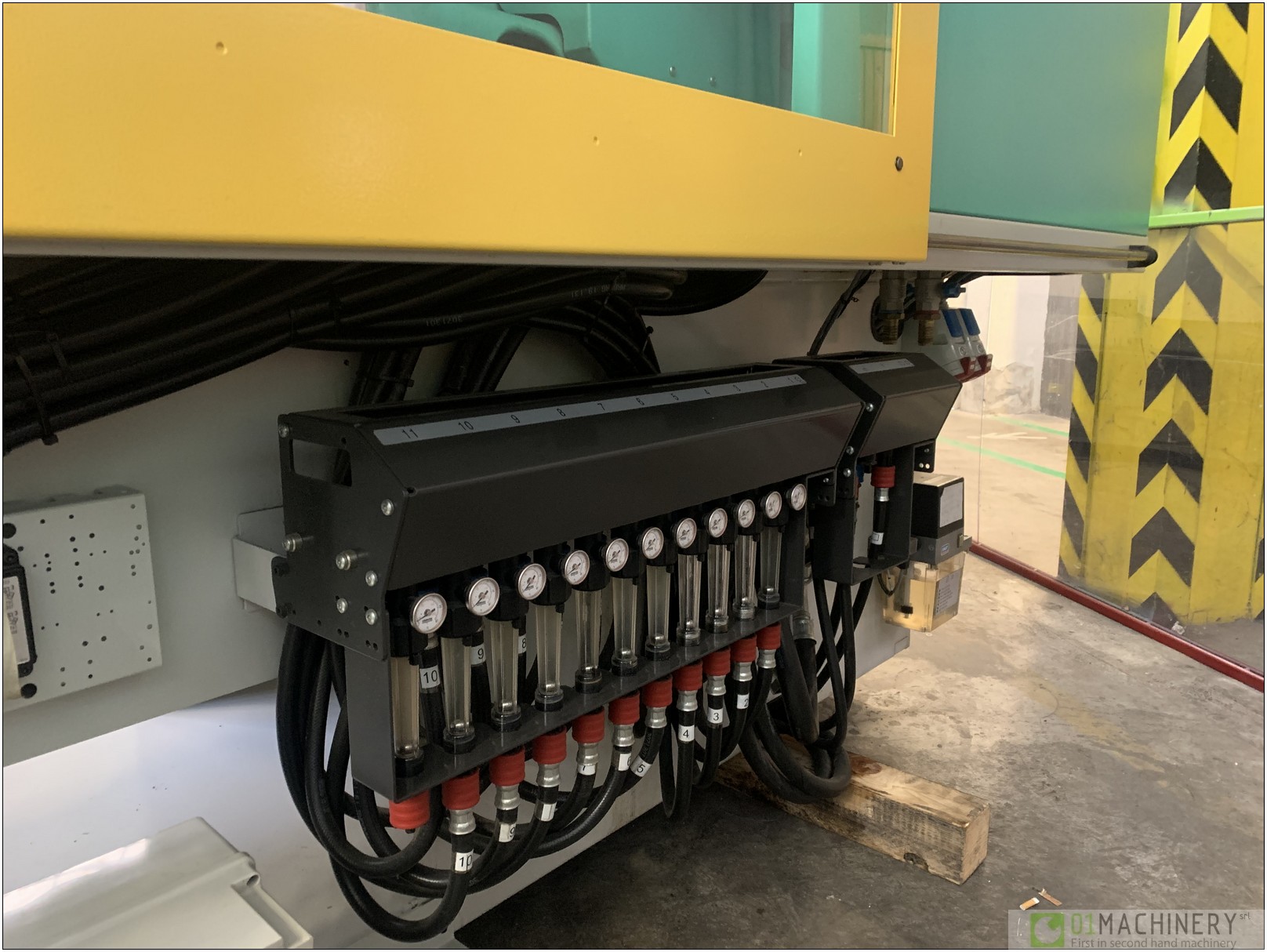

water dispensers opposite side operator 8 + 8
coloring interface
energy meter
