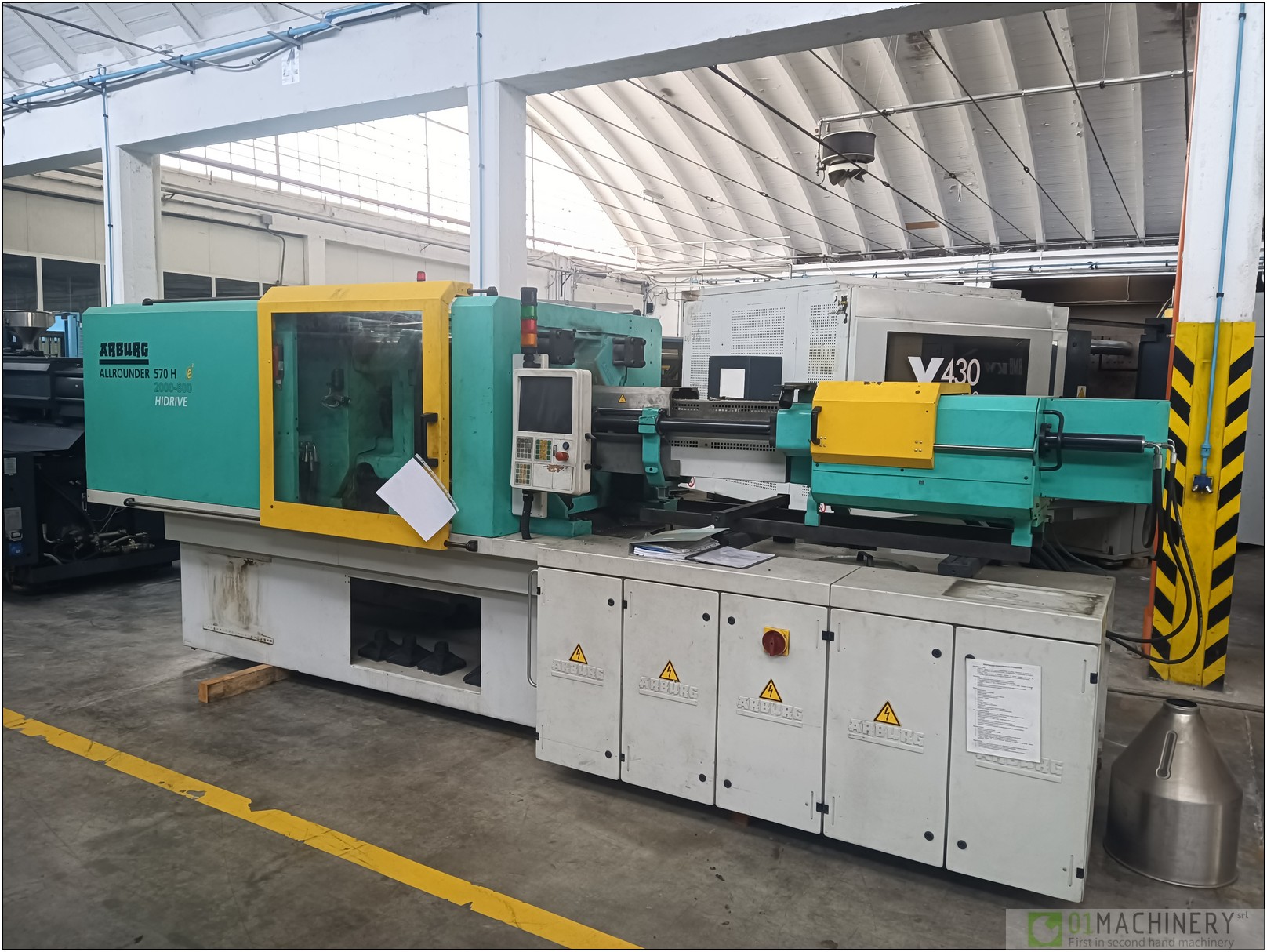

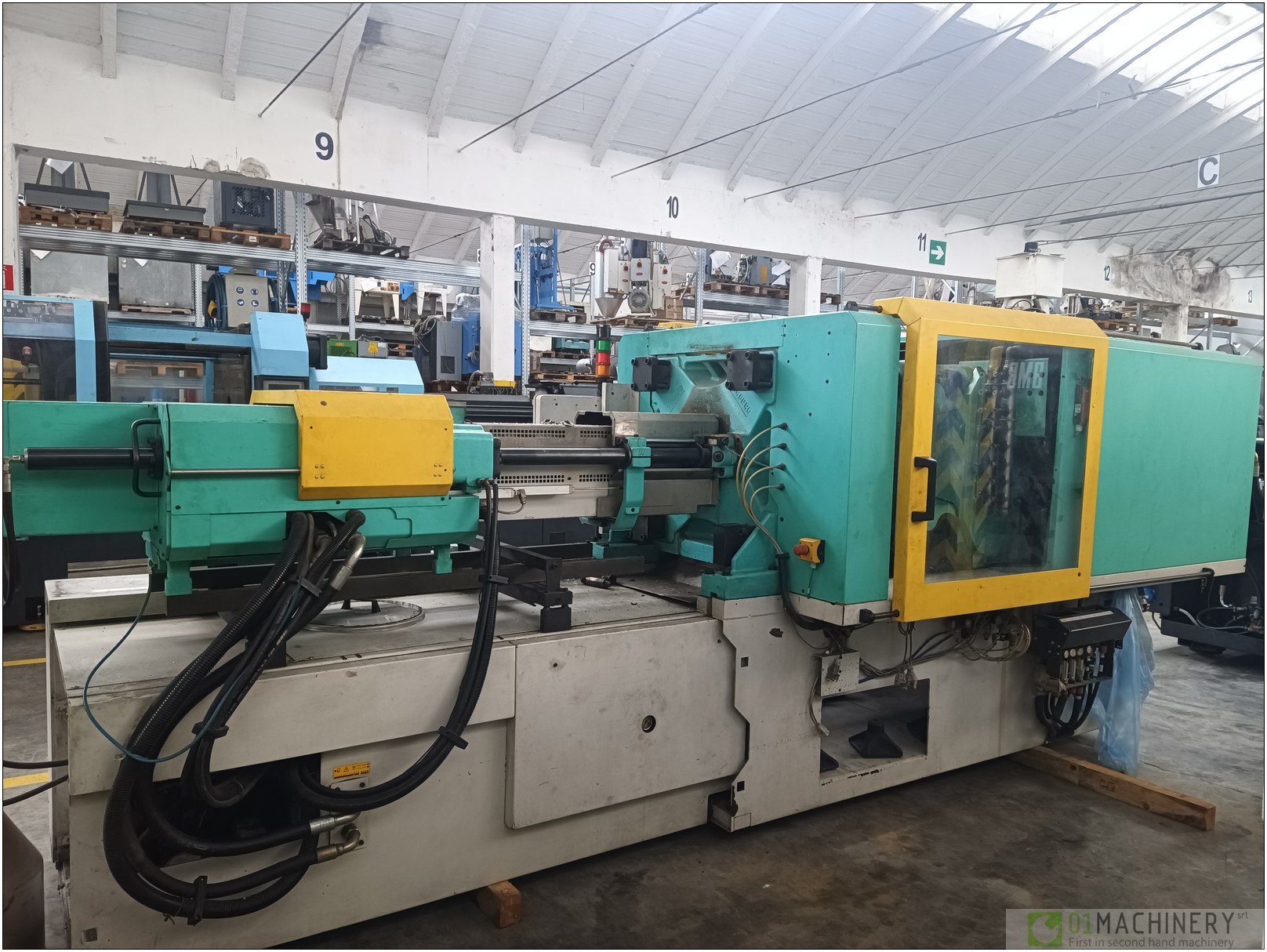

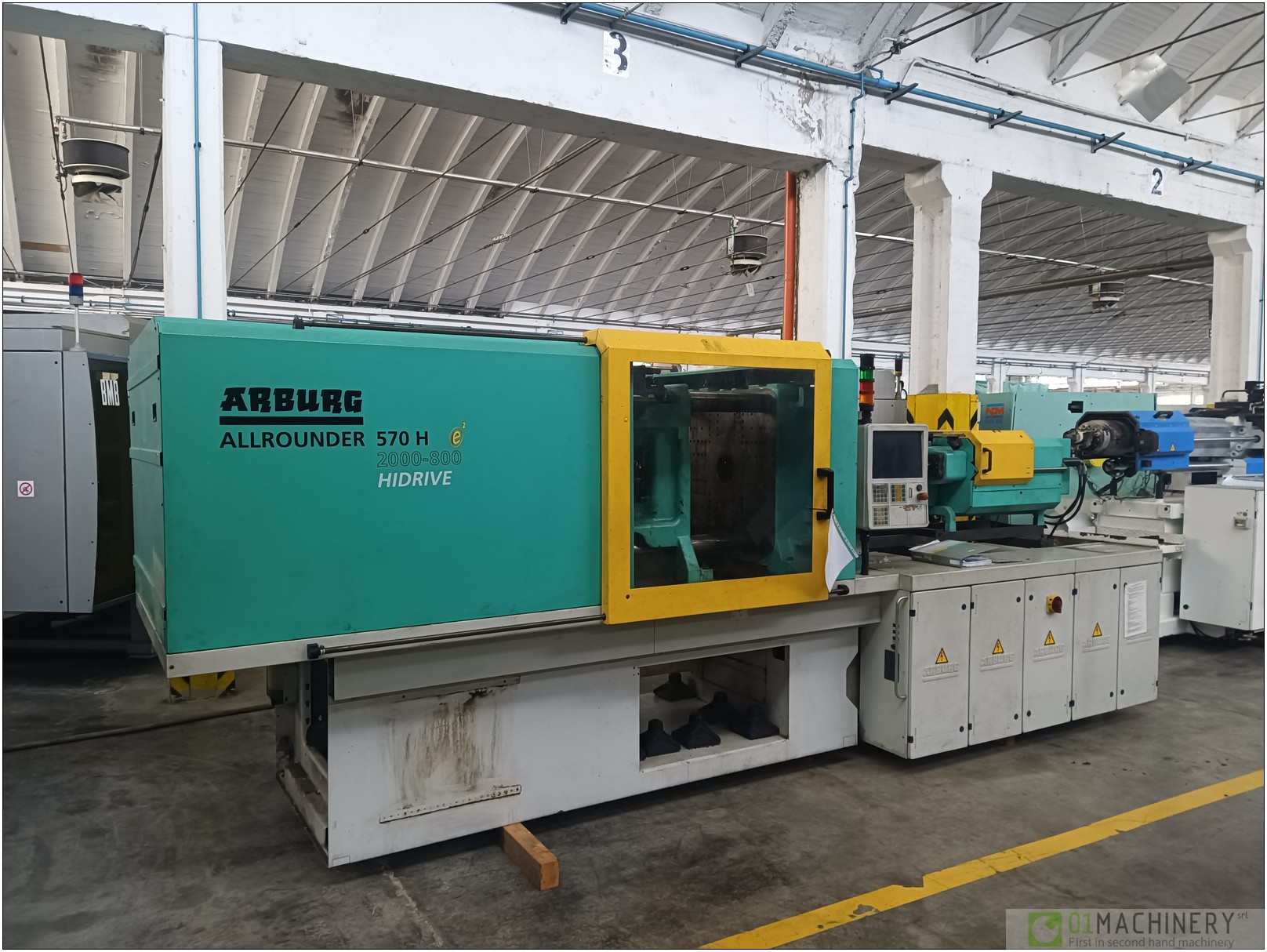

ARBURG 570H 2000-800 In 9522 AR 200 09

Thumb0-ARBURG 570H 2000-800 In 9522 AR 200 09 Thumb1-ARBURG 570H 2000-800 In 9522 AR 200 09 Thumb2-ARBURG 570H 2000-800 In 9522 AR 200 09 Thumb3-ARBURG 570H 2000-800 In 9522 AR 200 09 Thumb4-ARBURG 570H 2000-800 In 9522 AR 200 09 Thumb5-ARBURG 570H 2000-800 In 9522 AR 200 09 Thumb6-ARBURG 570H 2000-800 In 9522 AR 200 09

Technical Sheet

  • Code: In 9522 AR 200 09
  • Brand:ARBURG
  • Model:570H 2000-800
  • Tonnage:200
  • Year:2009
  • Clearence between tie-bars:570x570
  • Screw diameter:50
  • Calculated shot volume:392
  • Min/Max mould thickness: 250-550
  • Core pull: 1 IDRULICO 2 PNEUMATICI
  • Euromap: 2000-800
  • Mov. plasten stroke: 450
  • Air ejection: 2
  • Akkumulator: Yes

Description

movements with brushless motors: closing - mold height movement - dosing

the others are plumbers

installed languages ​​Italian English German
